TCC-R3060-23

R30-23.5 Hooked Road Bike Rim (Tubeless Ready)

SKU: TCC-R3060-23 Categories: R30-23, Road, Road Rims

Parameters

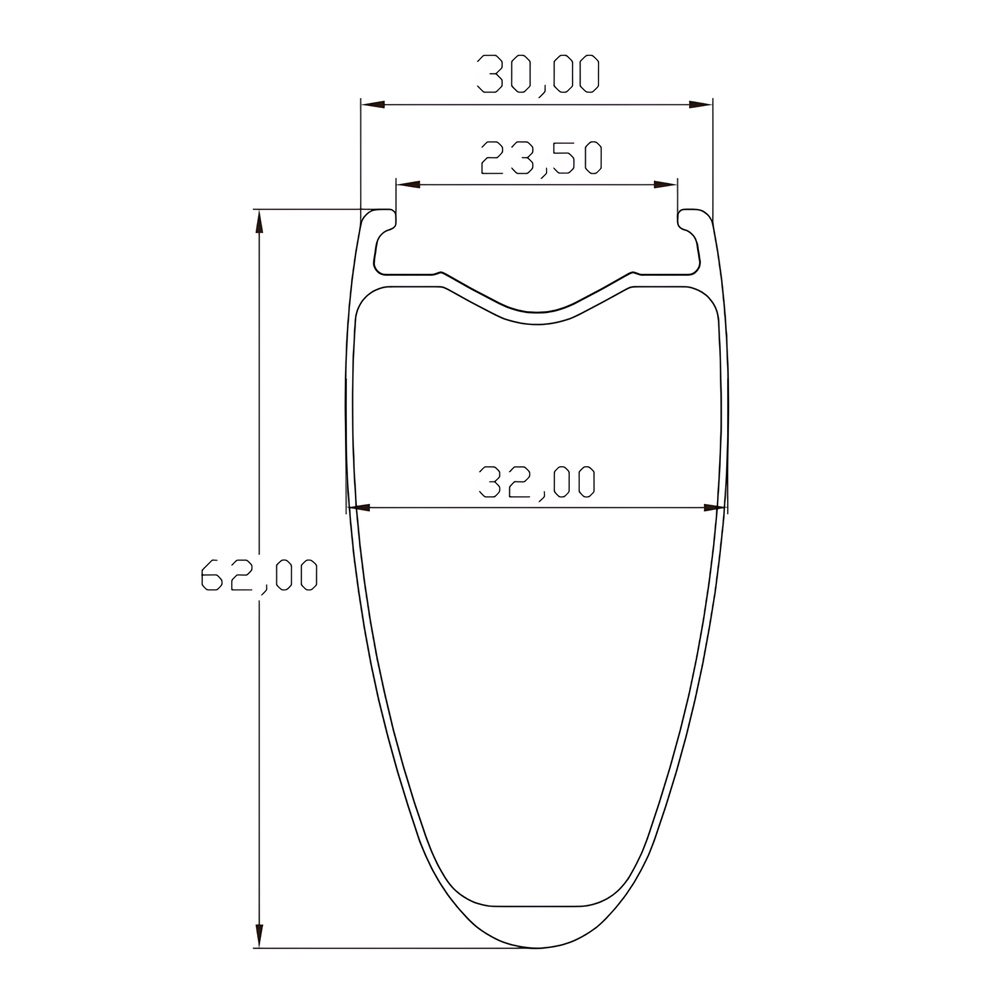

Model/	Item No	Size	Depth	Inner Width	Brake	ERD	Weight (Non-coating)
R30-23.5 Road Bike Rim Hooked Tubeless Ready	TCC-R3050-23	700c	50mm	23.5mm	Disc	540.5	345+/15g
	TCC-R3060-23	700c	60mm	23.5mm	Disc	520.5	420+/15g
	TCC-R30106-23	700c	106mm	23.5mm	Disc	428.5	620+/15g

Technologies

ONE-PIECE MOLDING

Since the rims do not have the weaknesses associated with the various components of any of the different designs, they are continuously molded using techniques known as "one-piece molding". Because of this, the rims are perfectly symmetrical and evenly rolled.

COATING FREE

Due to high-quality carbon fiber and specially formulated epoxy (resin) along with state-of-the-art molding and manufacturing techniques.Just clear coating or none coating.See the finish info.

SPOKE HOLE ANGLES

We drill spoke hole angles to match or compliment the spoke angles created by the hub flange. Matching the spoke hole drilling angle in the rim to the spoke angle of the hub/hub flange allows the nipple to be better aligned with the spoke when the wheel is tensioned resulting in fewer broken spokes and nipples.

FLATNESS AND ROUNDNESS

Our molding and manufacturing techniques which allow us to control rim flatness to within 0.15mm and roundness to withing 0.2mm making it incredibly easy to build perfectly true, strong wheels.

HAND-BUILT

All wheels are 100% hand built to exacting standards by well trained wheel builders using only the best available components. All of our wheels are rigorously tested to guarantee accurate spoke tension and precise truing.
